Element Oxion

Element Oxion - 7 Pro All in One Functional Trainer Free Standing Kit

$5,899.00
$5,899.00
$6,999.00
Shipping calculated at checkout.
SKU:

KIT1730

1.888.469.3031 CONTACT US
View full details
Element Oxion

7 Pro All In One Functional Trainer Rack

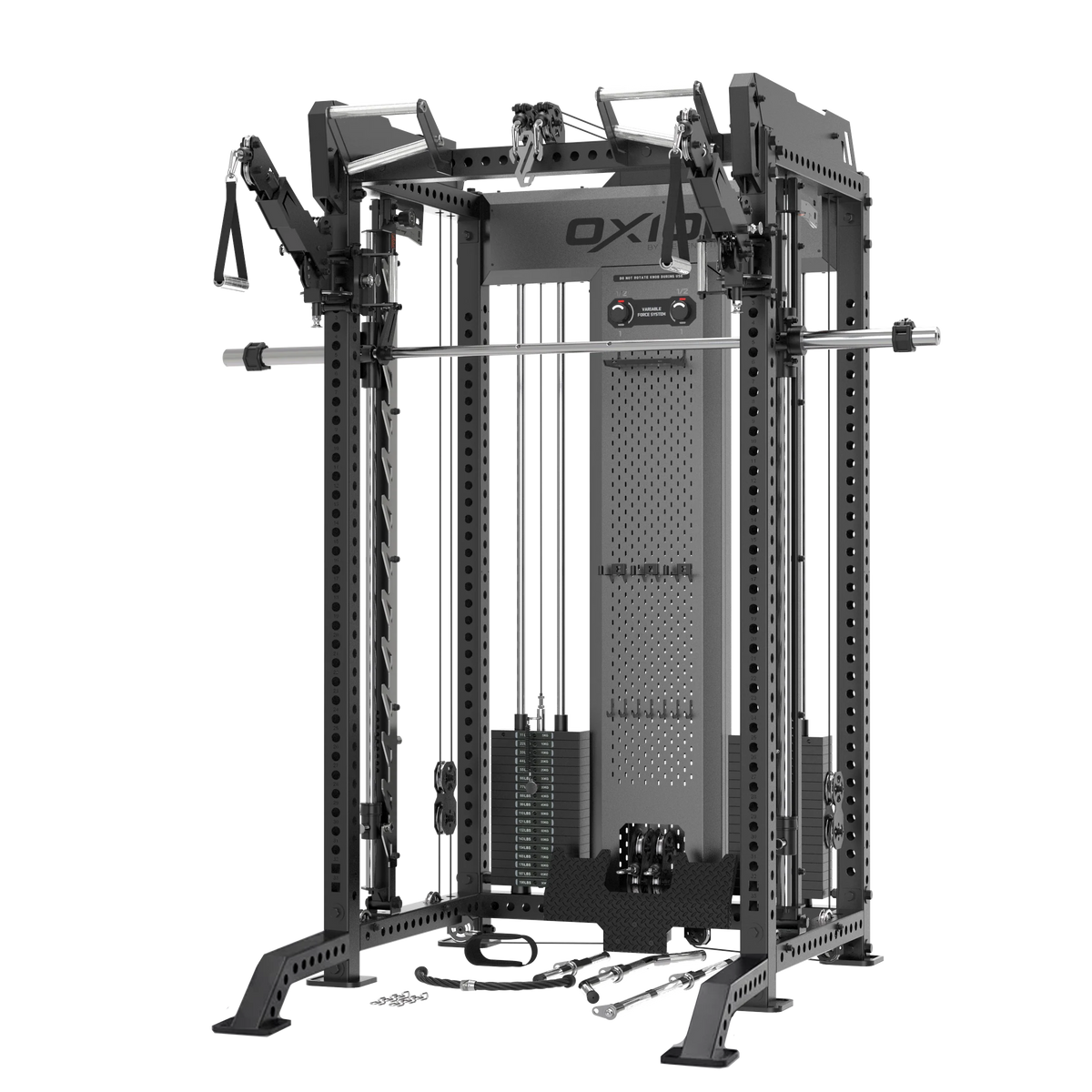

Element Oxion 7 Pro All In One Functional Trainer Rack

Element Oxion 7 Pro All In One Functional Trainer Rack

Work the cables. Set the Smith. Load the cage.

Combining pivot-arm cables, an adjustable Smith machine and a full power cage, the Oxion 7 Pro supports guided and free-weight training in one station.

The Element Oxion 7 Pro brings cable resistance, Smith bar exercises and power cage training into one six-upright frame. Build sessions around guided compound lifts, free-weight movements and cable accessory work without moving between separate strength stations.

Adjustable 1:1 & 2:1 Resistance

Select your cable ratio with a turn of the dial.

Use 1:1 for higher resistance or 2:1 for extended cable travel through functional movements. Each 200 lb stack supplies up to 200 lb of resistance at 1:1 or 100 lb at 2:1.

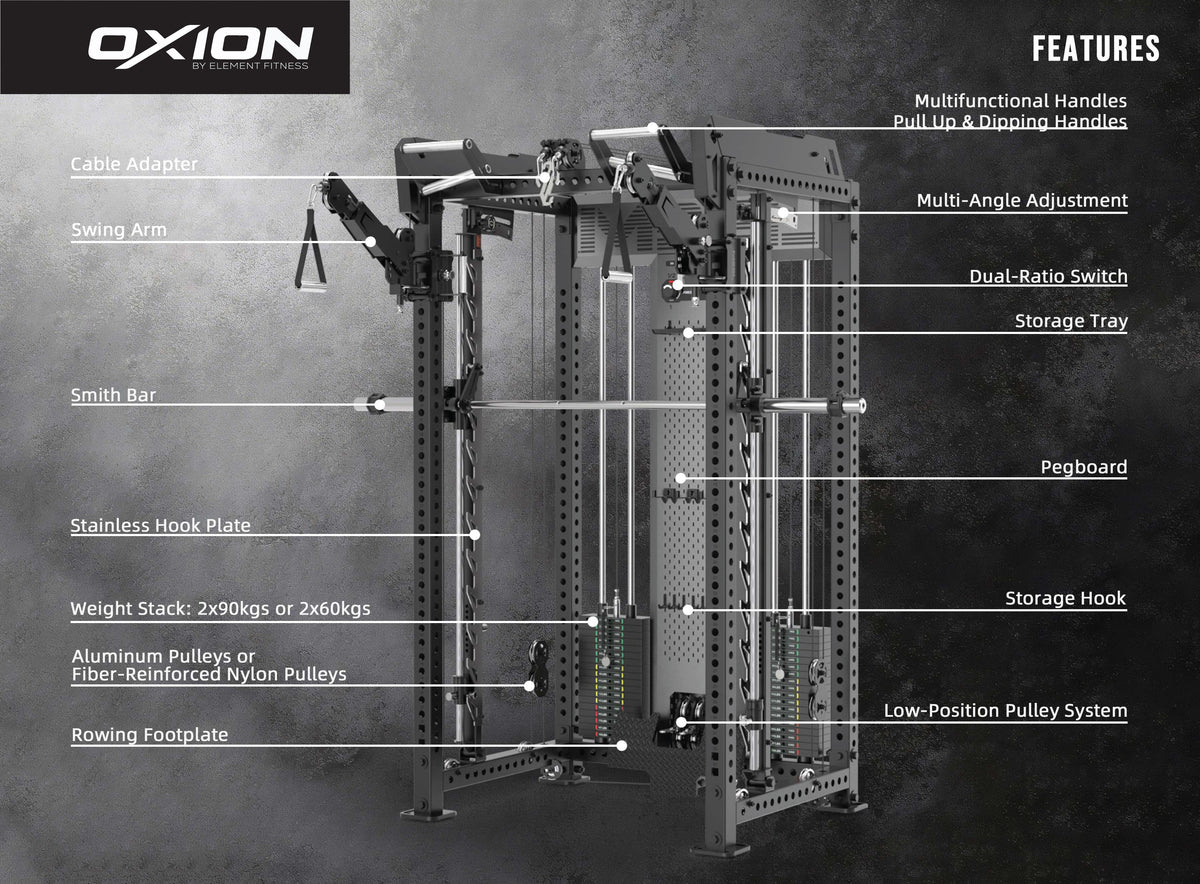

Features

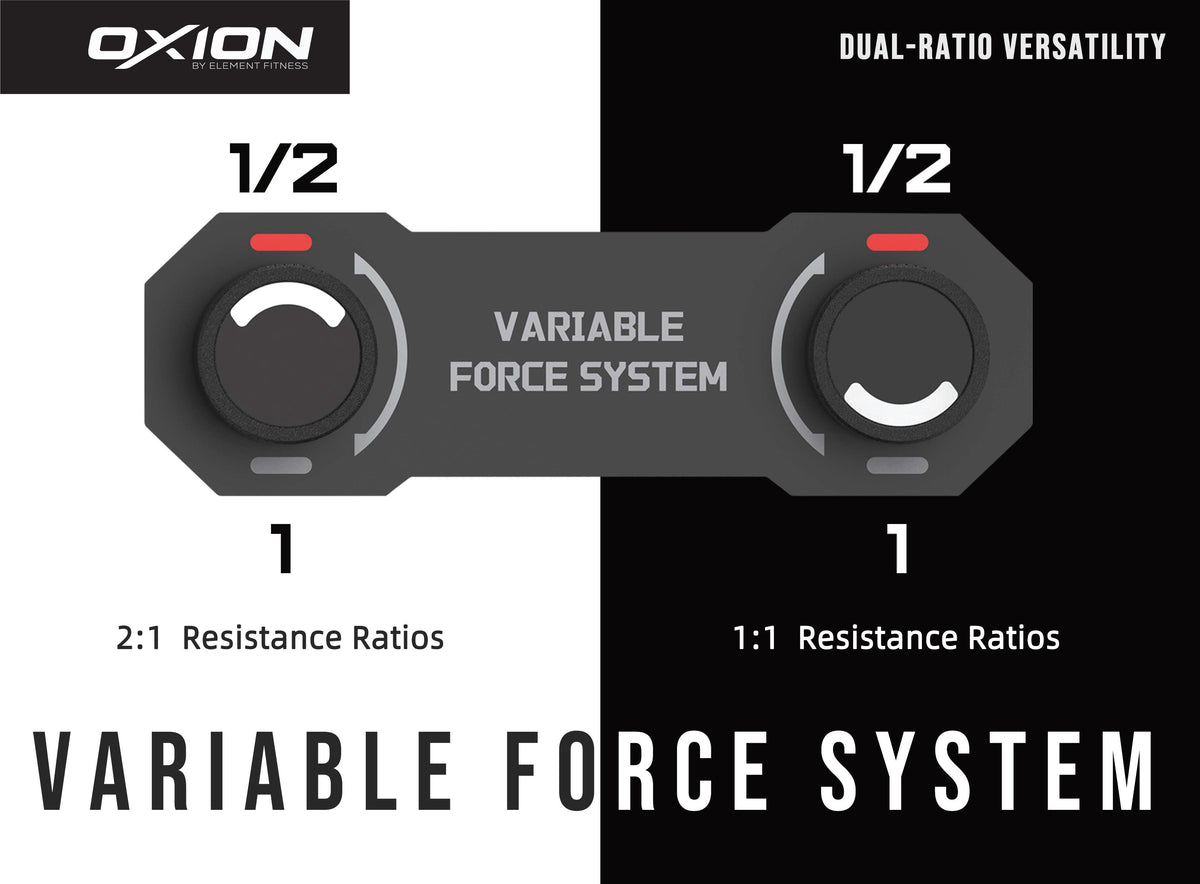

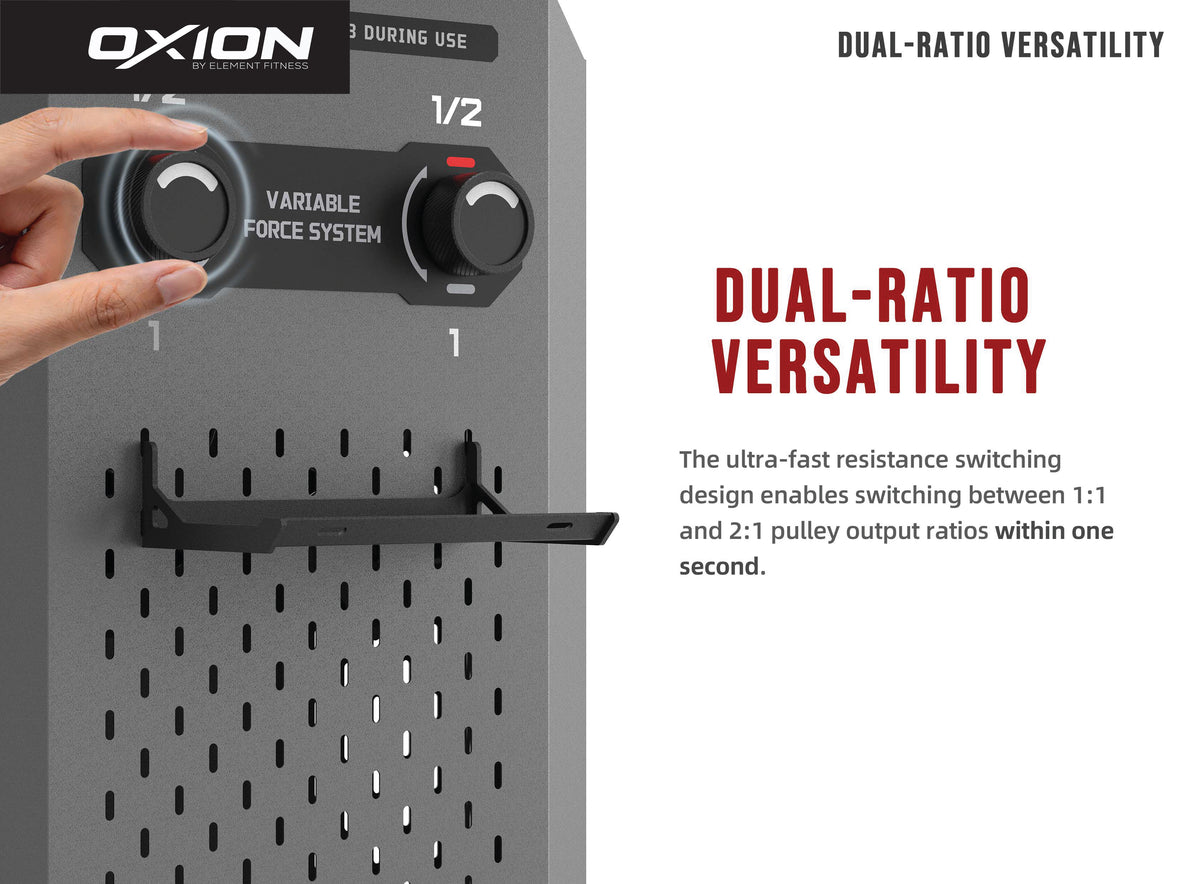

VARIABLE FORCE SYSTEM

Match cable resistance to your exercise with quick selection between 1:1 and 2:1 pulley ratios. Each 200 lb weight stack delivers up to 200 lb of resistance at 1:1 or 100 lb at 2:1.

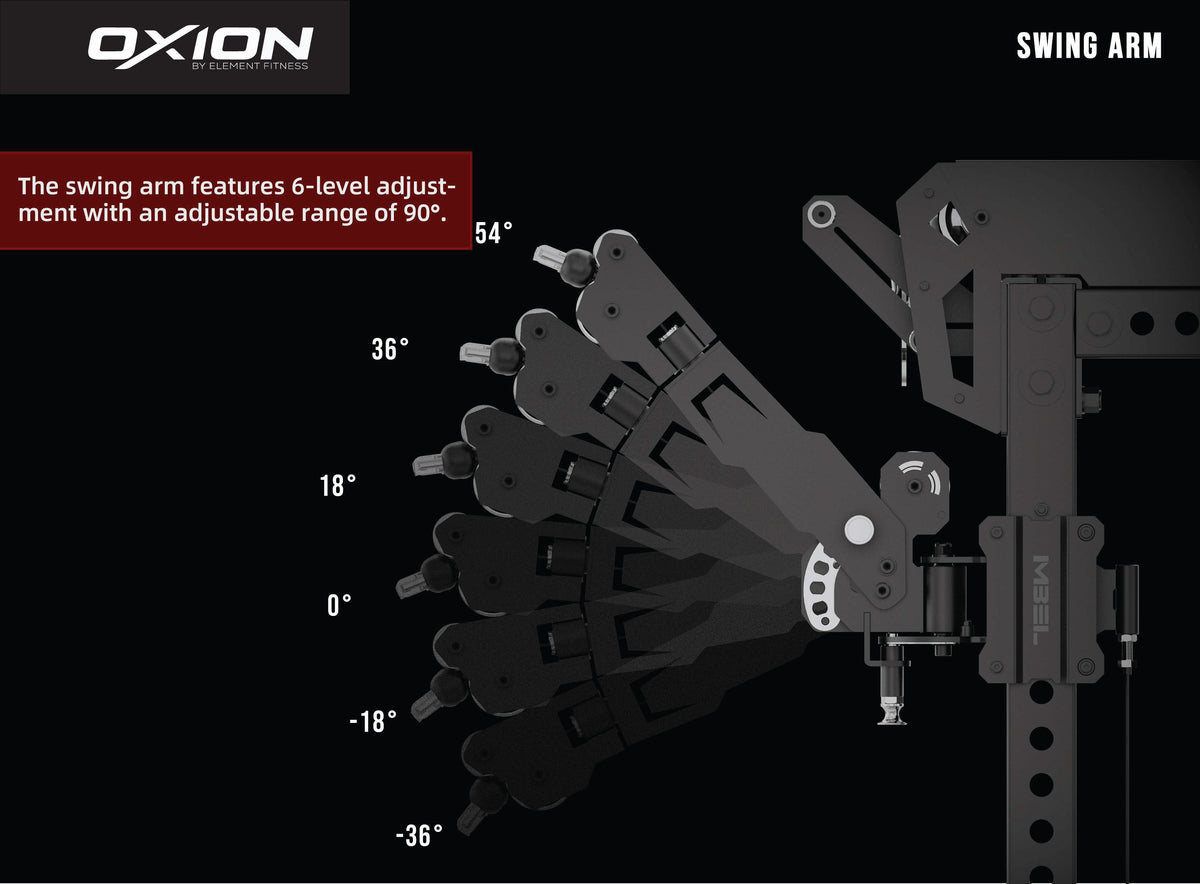

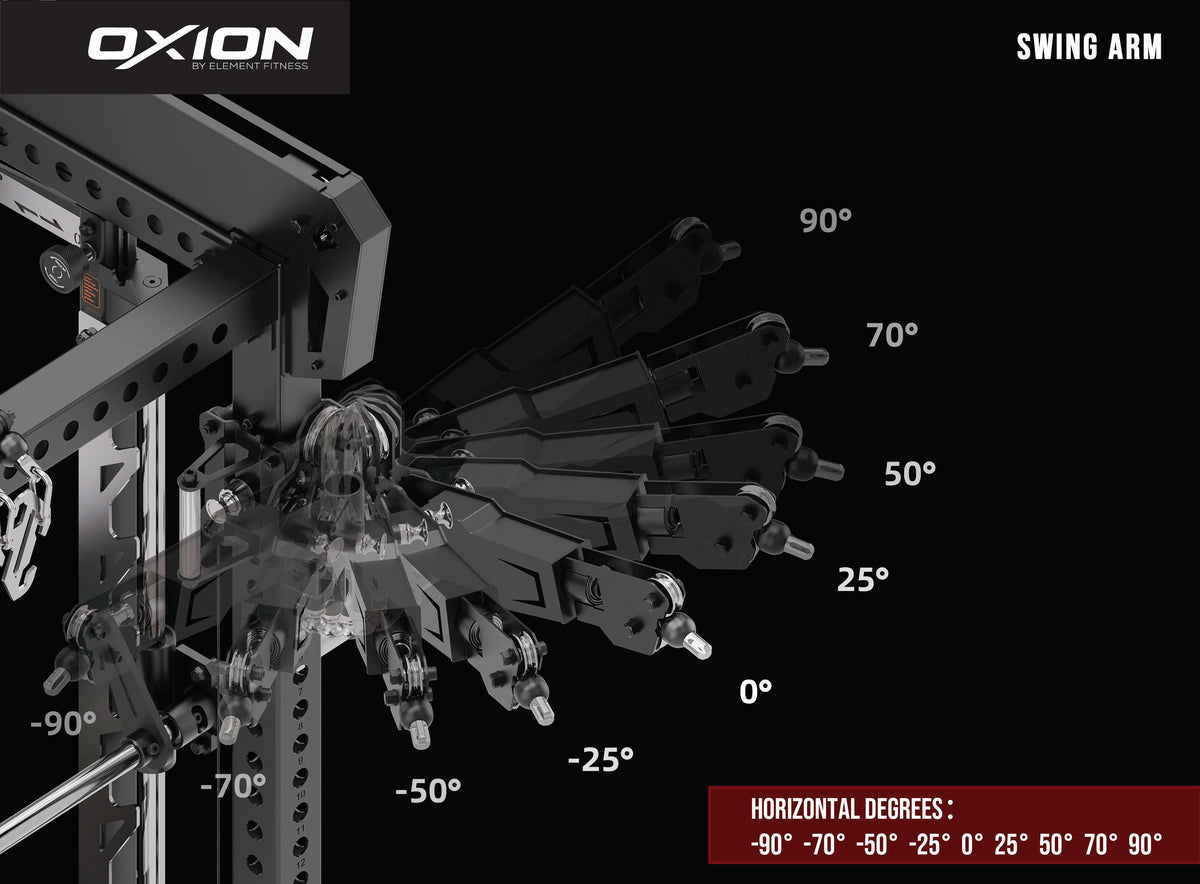

PIVOT ARM

Position each pivot arm across 6 vertical adjustment levels from -36° to 54° and 9 horizontal settings from -90° to 90°. These adjustments let you align cable resistance with your stance, exercise and intended movement path.

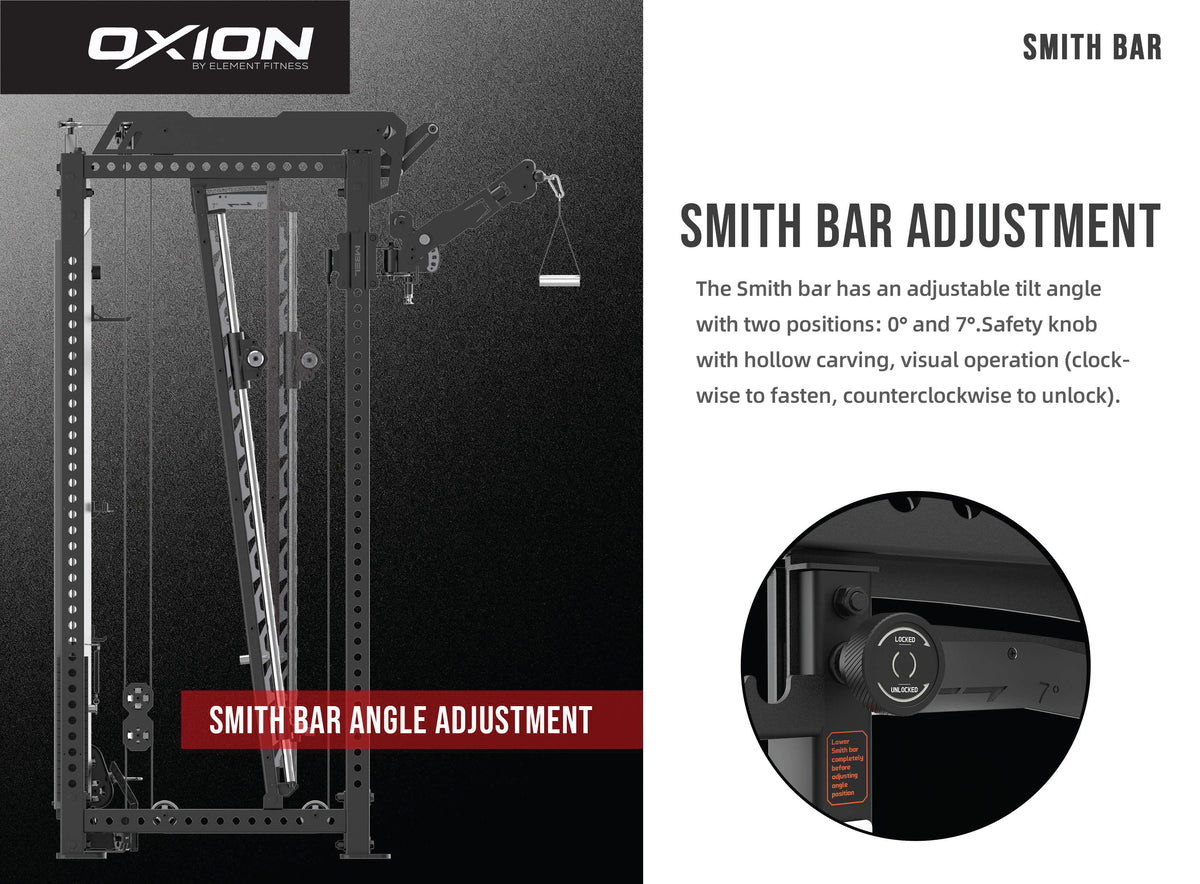

SMITH BAR ADJUSTMENT

Configure the Smith bar for a 0° vertical path or a 7° forward-angled path to accommodate different setups for squats, presses, and compound lifts. A clearly labelled locking knob secures the selected position, allowing you to set the guide angle before training. Fully lower the bar before making any position changes.

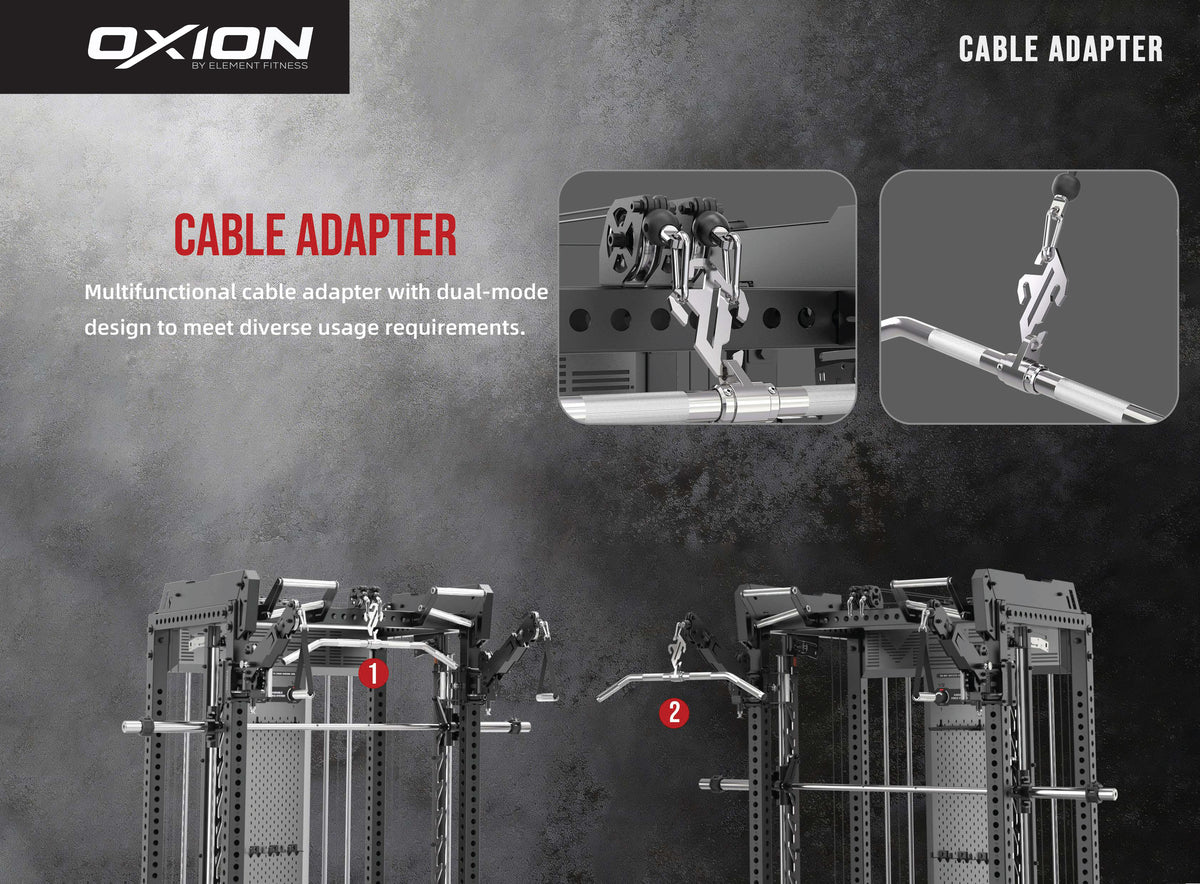

CABLE ADAPTER

Use the cable adapter to connect both cables for a total 400 lb of resistance during bilateral pulls and presses, or select a single cable for unilateral exercises. Two training configurations let you switch approaches quickly without replacing hardware between movements.

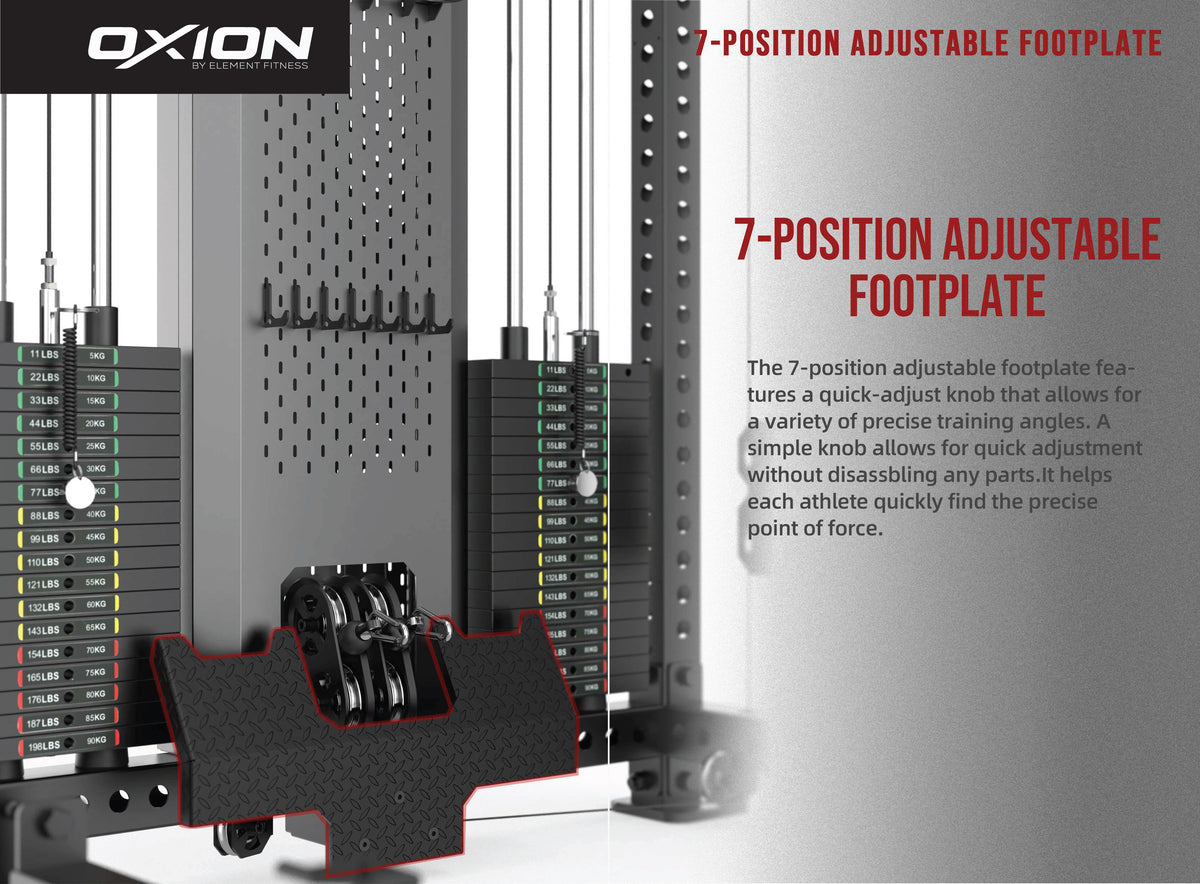

7-POSITION ADJUSTABLE FOOTPLATE

Choose from seven footplate positions to suit your exercise setup. A hand-turn knob makes angle changes tool-free, providing an adjustable contact surface for supported foot placement throughout each movement.

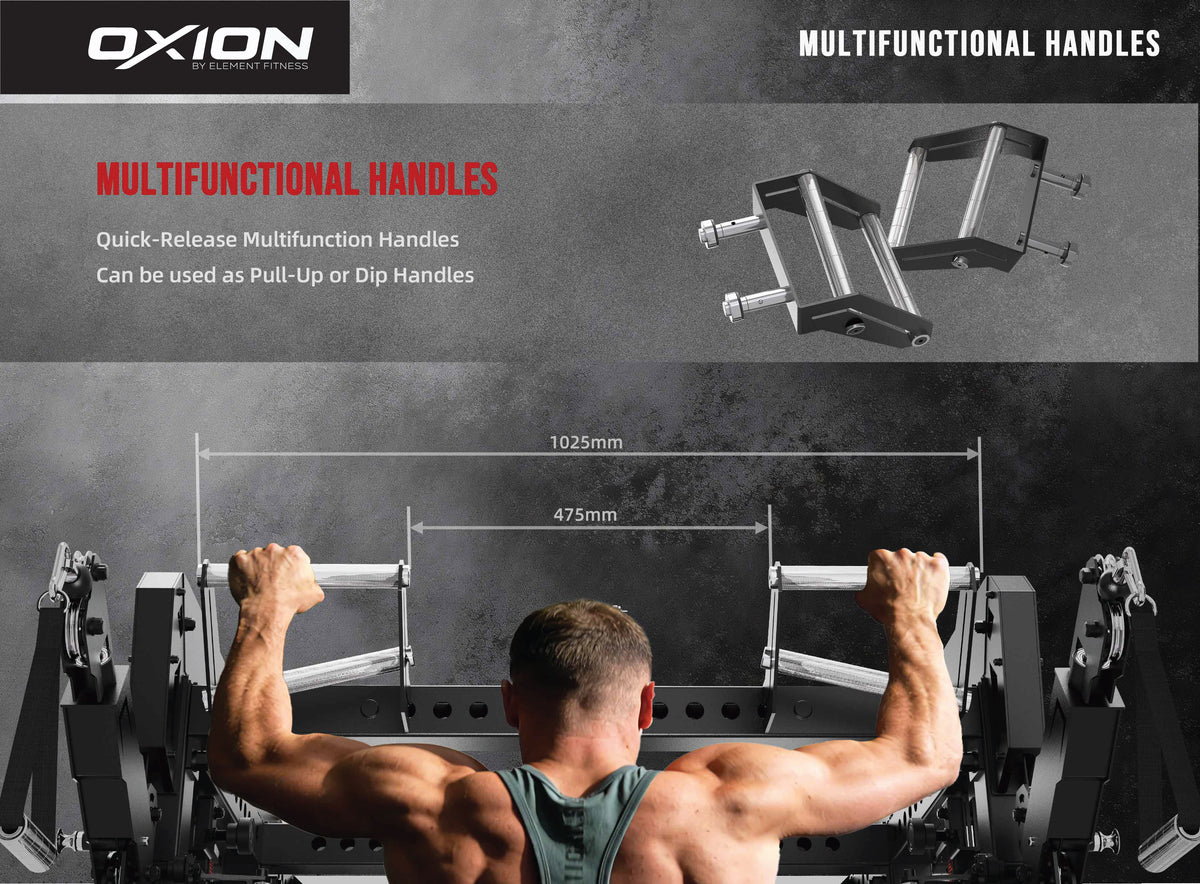

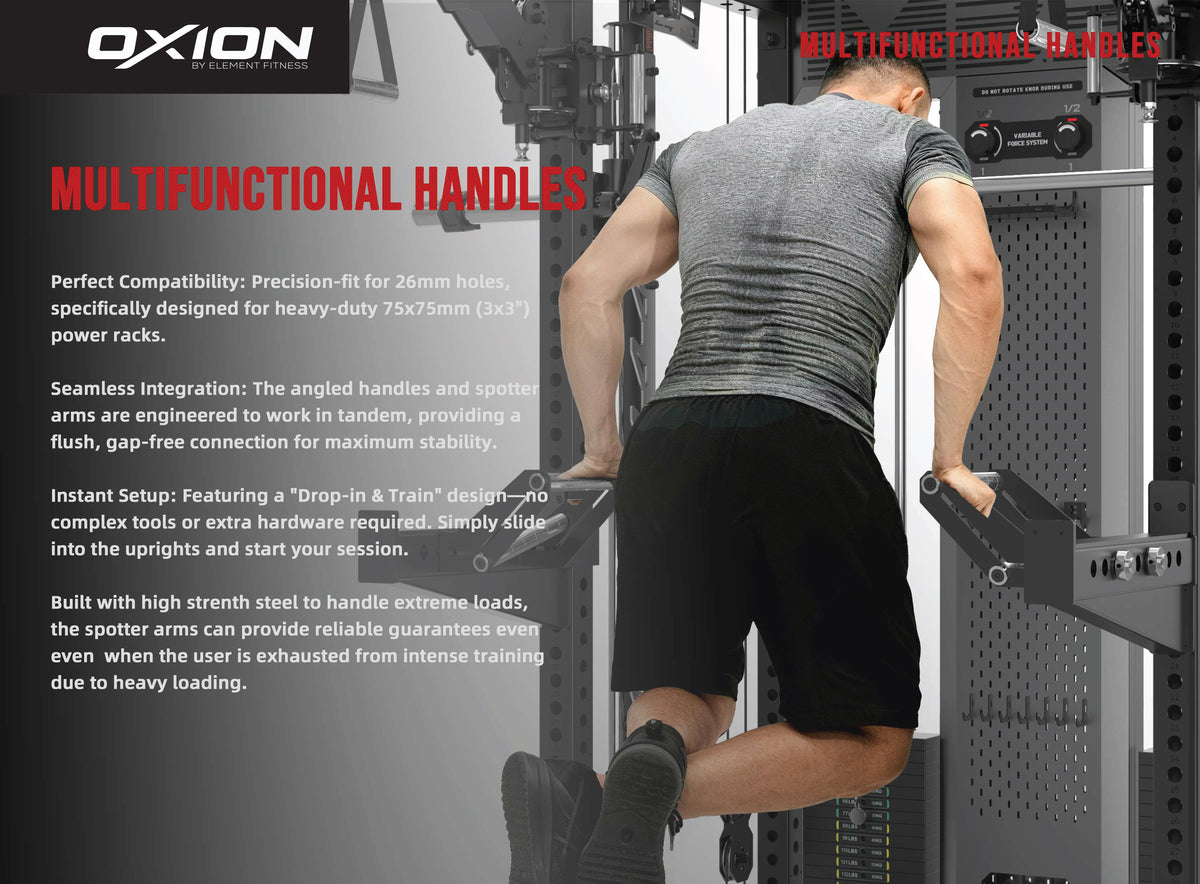

MULTIFUNCTIONAL HANDLES

Set up narrow or wide training positions with angled handles offering 475 mm and 1,025 mm grip widths. The high-strength steel handles mount without tools and sit flush against the frame for a secure fit with minimal movement under load.

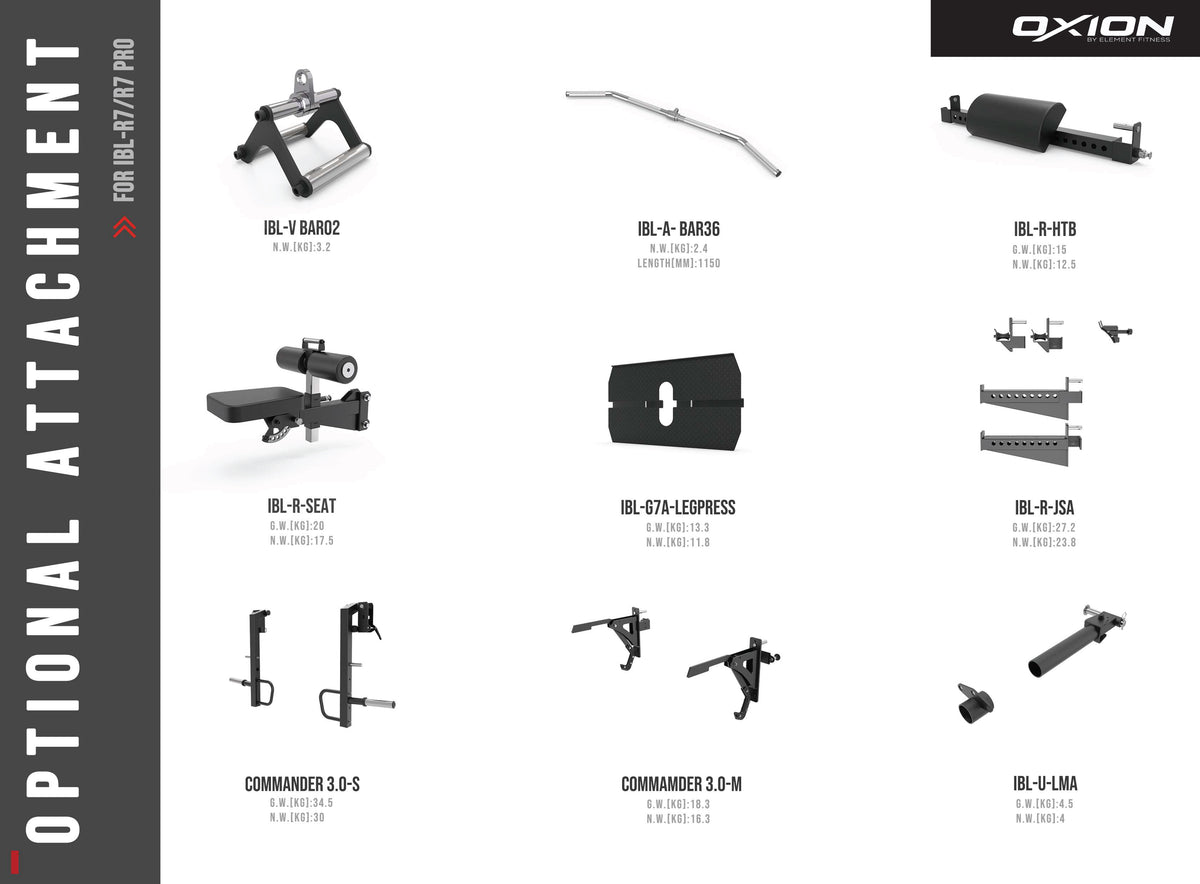

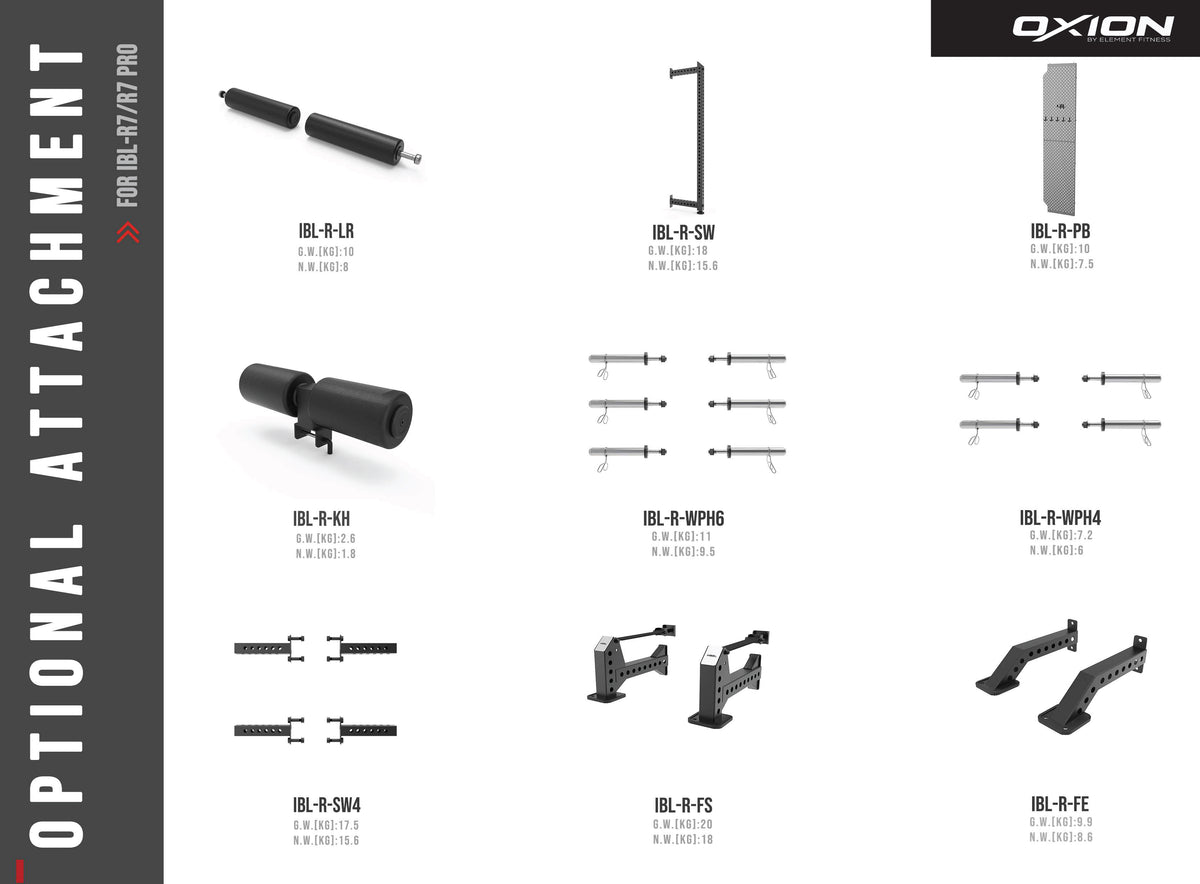

Optional Attachments

J HOOK SAFETY ARMS KIT

Add barbell support to your power cage with the J Hook Safety Arms Kit, providing bar placement and spotting support for heavy lifting in home and commercial gyms.

LANDMINE

Introduce angled presses, barbell rows, and rotational exercises with the Landmine Attachment, adding another movement option to your power cage training setup.

SEAT ATTACHMENT

Add seated exercise options to your rack with the Seat Attachment, providing a comfortable support surface for seated strength training.

LEG PRESS OPTION

Add a leg press exercise option to your power cage with the Leg Press Attachment, targeting the quads, glutes, and hamstrings without allocating space to a separate machine.

SPLIT SQUAT OPTION

Include supported split squats in your lower-body sessions with the Split Squat Attachment, providing stable support for single-leg strength, balance, and controlled movement.

LEG LOCK OPTION

Add leg support to your seated training setup with the Leg Lock Attachment, helping maintain a stable position as you work through demanding strength exercises.

HORIZONTAL SUPPORT PAD

Support additional exercise positions with the Horizontal Support Pad, adding a cushioned surface to your power cage for supported strength-training movements and accessory work.

STORAGE EXTENSION

Expand storage around your power cage with the Storage Extension, providing additional space to organize weight plates and the accessories used throughout your workouts.

PEG BOARD

Add upper-body conditioning to your power cage with the Peg Board Attachment, providing a grip-based training challenge for coordination, strength, and muscular endurance.

6 PACK OLYMPIC PLATE HORN

Keep plates close to your lifting area with the 6 Pack Olympic Plate Horn, adding six dedicated storage holders to organize Olympic weights around your power cage.

FOOT EXTENSION WITH STRAPS

Add a supported foot position to specialized strength movements with the Foot Extension with Straps, combining a stable contact surface with straps to help maintain placement during exercise.

FOOT EXTENSION

Adapt your foot placement for different rack exercises with the Foot Extension, providing an additional support platform for stable positioning during strength-training movements.

PLATE STORAGE BRACKET

Store Olympic plates directly on your rack with the Plate Storage Bracket, keeping weights securely organized and accessible when changing loads between exercises.

Element Oxion 9 Pro All In One Functional Trainer Rack

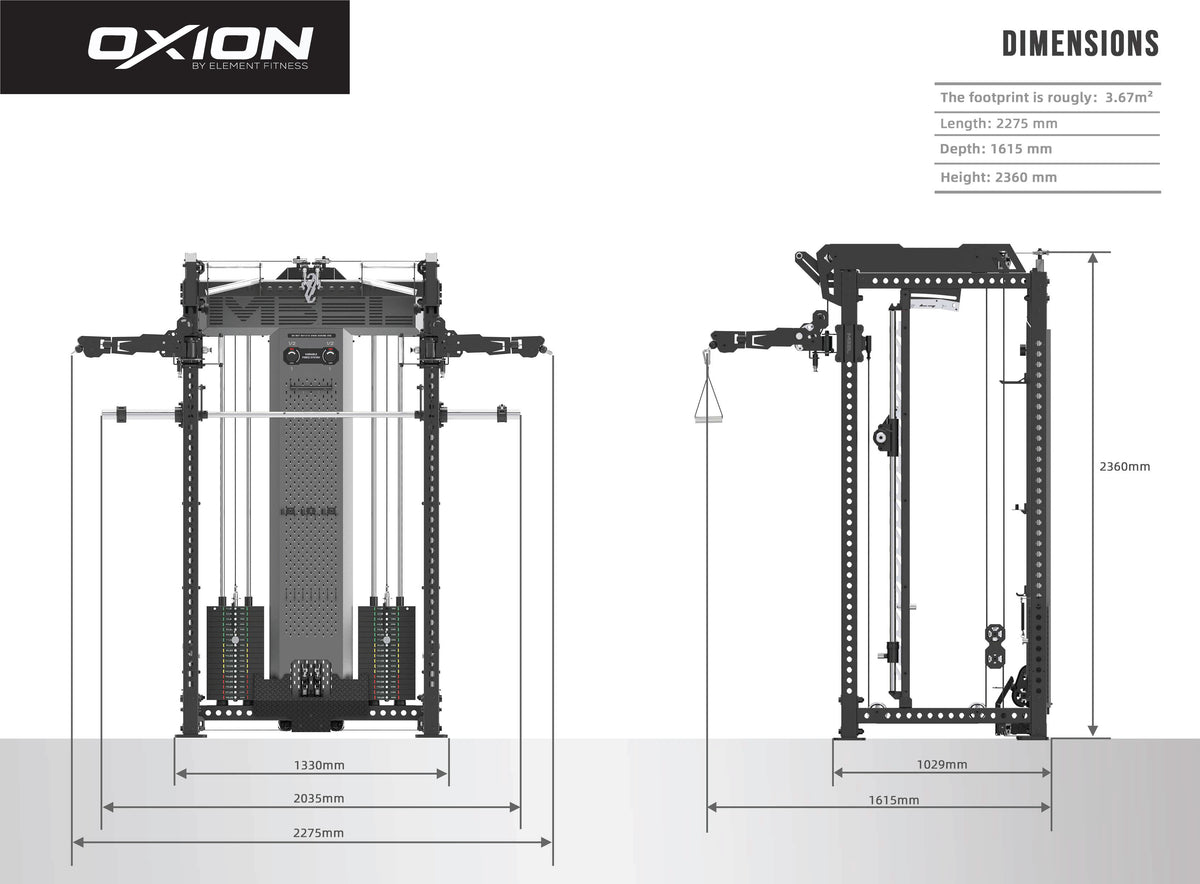

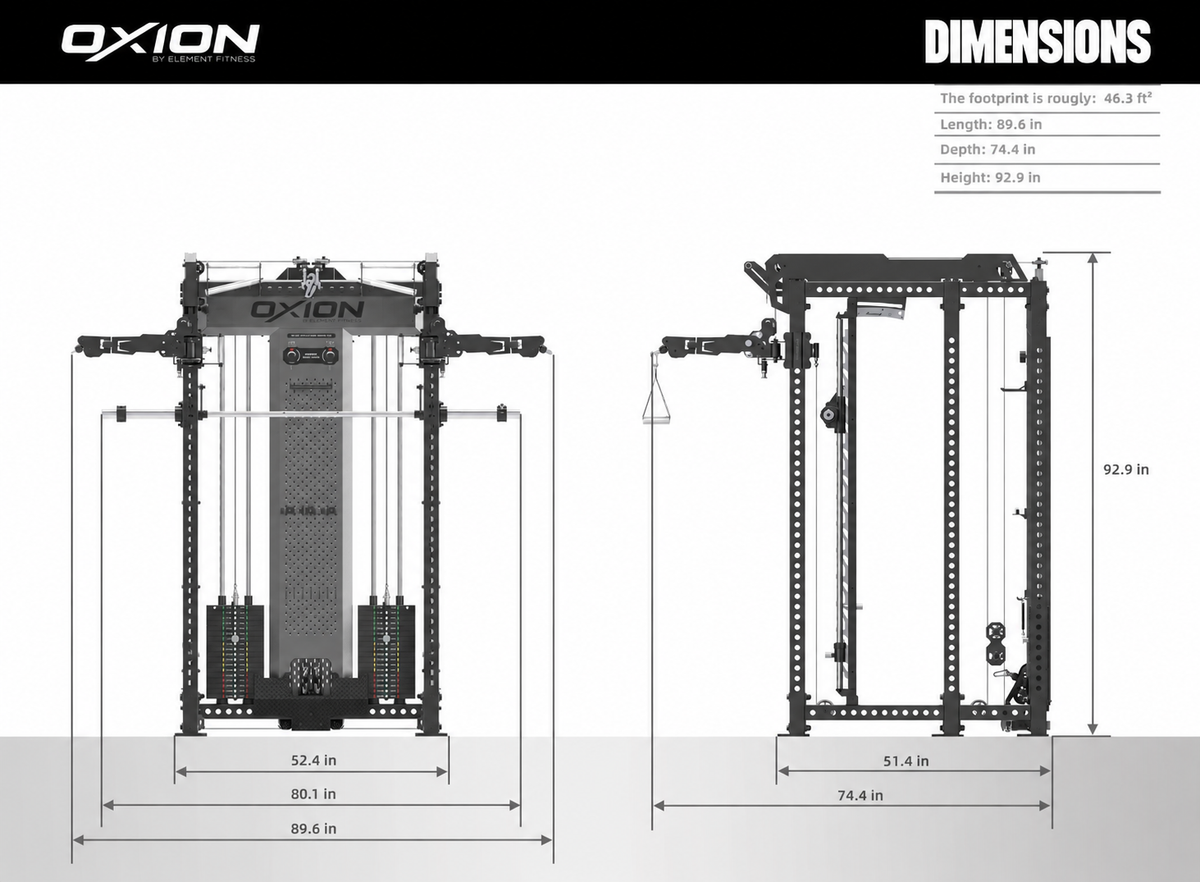

Oxion 7 Pro Power Cage Frame Dimensions

Overall size: 93" (H) x 80.1" (W) x 72.1" (D)

  • Footprint: 63.6" (W) x 72.1" (D)
  • Width with expanded Pivot Arm: 89.6"
  • Smith bar length: 80.1"
  • Smith bar clearance at highest position: 82"
  • Smith bar clearance at lowest position: 14"
  • 3"x 3" uprights with 1" hole size

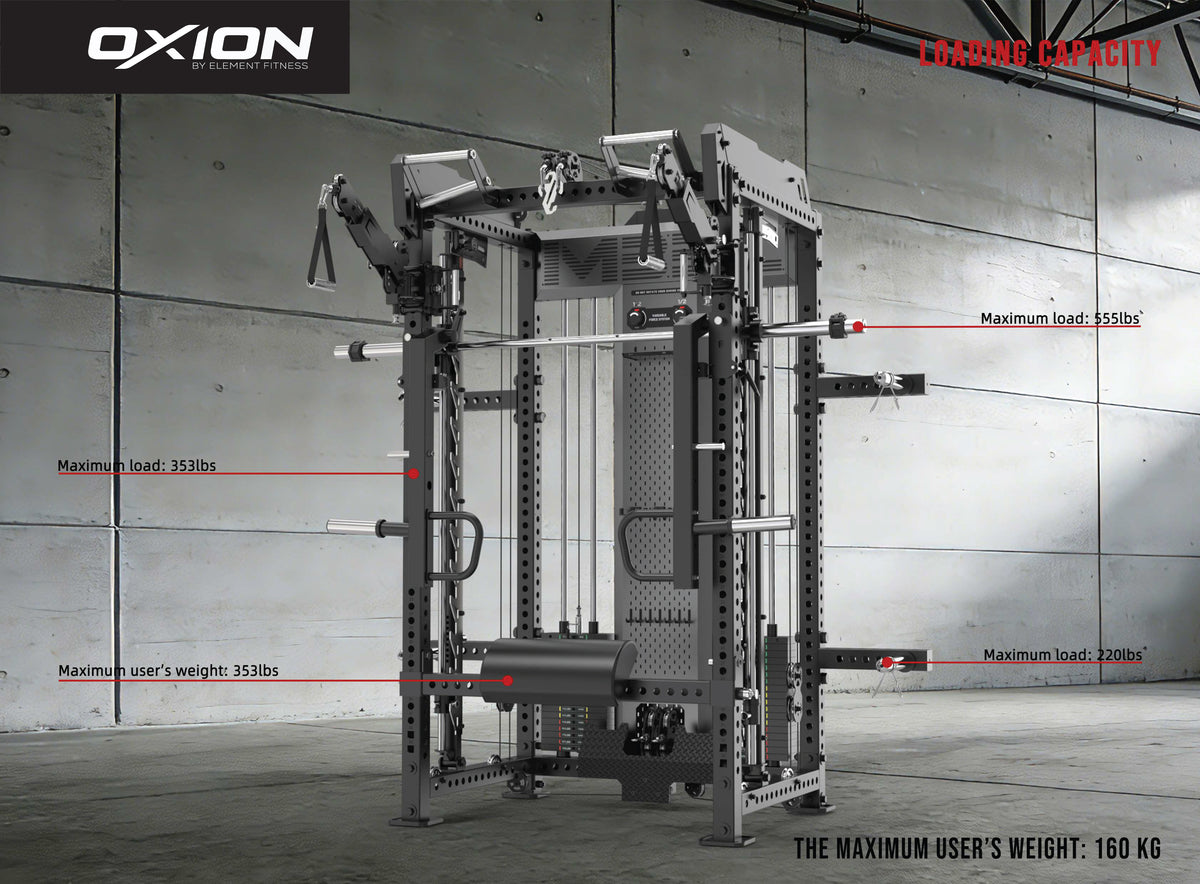

Weight capacity:

  • J-cup: 550lb
  • Spotter arms: 550lb
  • Front foot extension: 550lb
  • Smith Bar: Dynamic 550lb; Static 3300lb

Hardware for securing the frame to the floor is included:

  • (4) Concrete anchors
